LD Systems U304.7 IEM - In-Ear Monitoring System
In-Ear Monitoring System
LD Systems
LD Systems U304.7 IEM - In-Ear Monitoring System
Vidéo de présentation
LD Systems U304.7 IEM - In-Ear Monitoring System
LD Systems U304.7 IEM - In-Ear Monitoring System
LD Systems U304.7 IEM - In-Ear Monitoring System
LD Systems U304.7 IEM - In-Ear Monitoring System
LD Systems U304.7 IEM - In-Ear Monitoring System
LD Systems U304.7 IEM - In-Ear Monitoring System
LD Systems U304.7 IEM - In-Ear Monitoring System
LD Systems U304.7 IEM - In-Ear Monitoring System
> >
< <

LD Systems U304.7 IEM - In-Ear Monitoring System

In-Ear Monitoring System
LD Systems

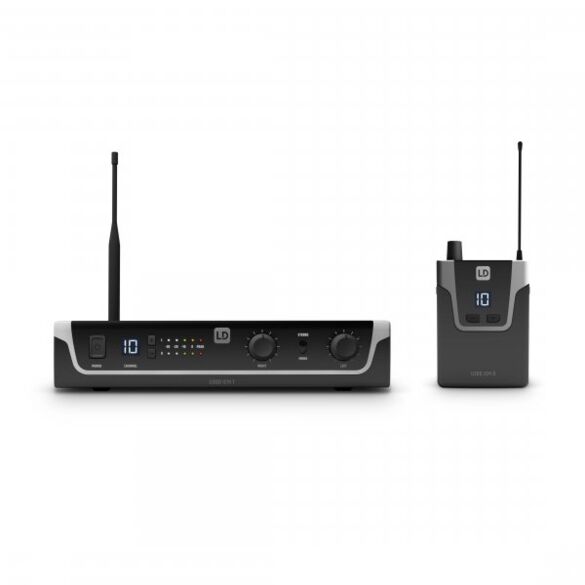

We have developed the wireless U300 in-ear monitoring systems for unlimited freedom of movement on the stage with perfect in-ear monitor sound at all times. Developed in Germany, their clear, modern design and straightforward operation make them the perfect choice – not just for beginners. Their reliable range of up to 100 m and their low-reaching frequency band of 50 Hz to 16 kHz ensure professional performance. U300 in-ear sets are available for operation in 5 frequency bands: 584 MHz - 608 MHz, 655 MHz - 679 MHz, 823 MHz - 832 MHz+ 863 MHz - 865 MHz, 470 MHz - 490 MHz or 514 MHz - 542 MHz. Six systems can be used simultaneously in each case.

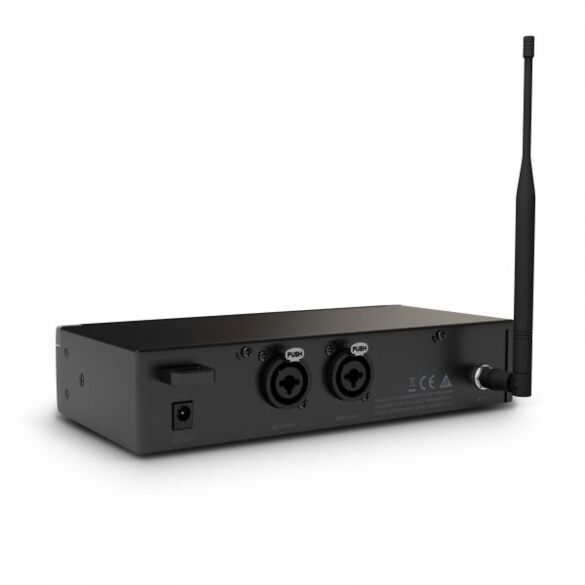

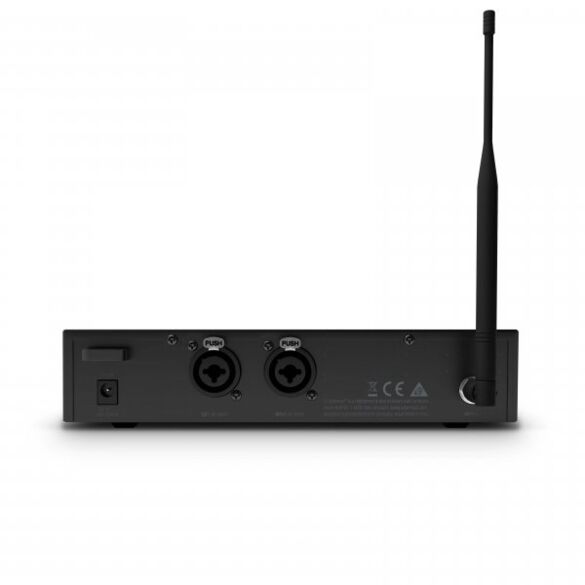

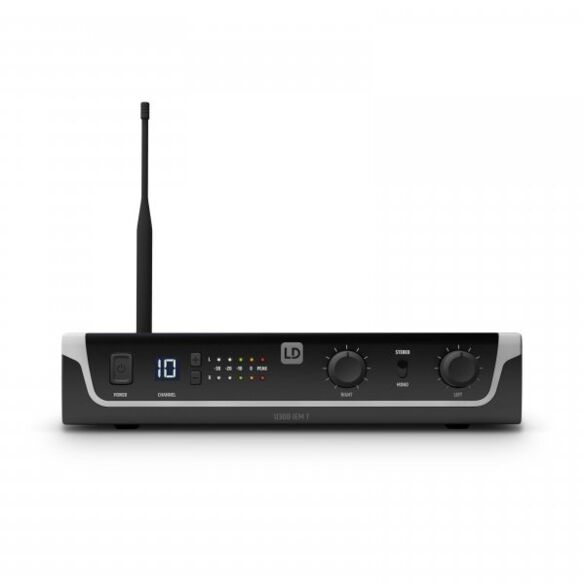

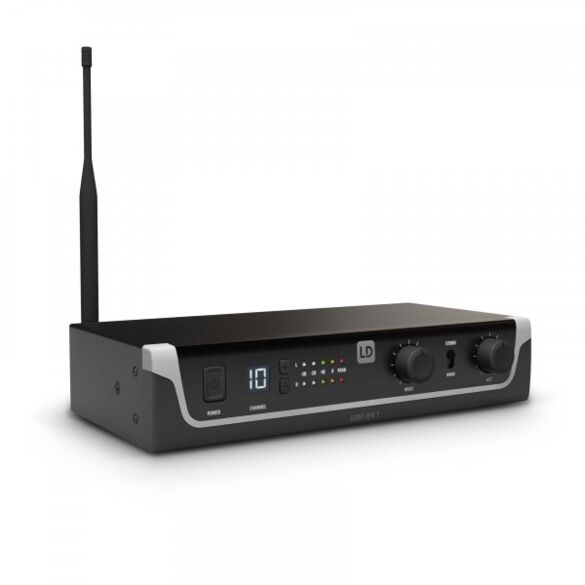

The U300 in-ear transmitters offer a choice of 12 transmission channels and an RF transmission power of 10 mW. They can also be operated in mono or stereo mode. Combo sockets serve as symmetrical XLR and asymmetrical 6.35 mm jack inputs. Left and right input levels can be controlled separately, while two LED chains indicate audio signal strength.

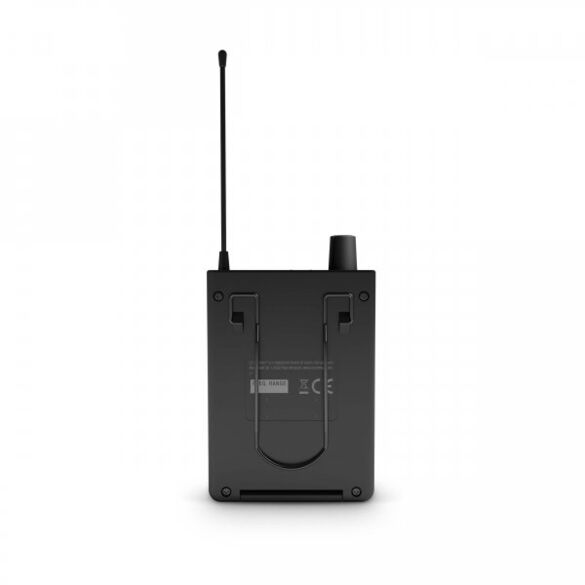

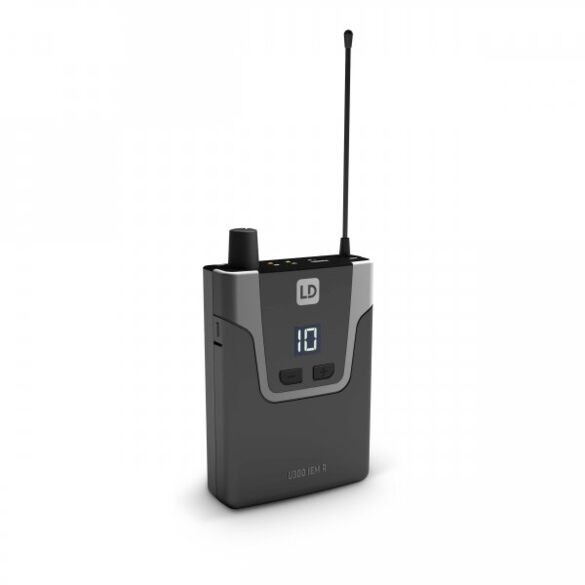

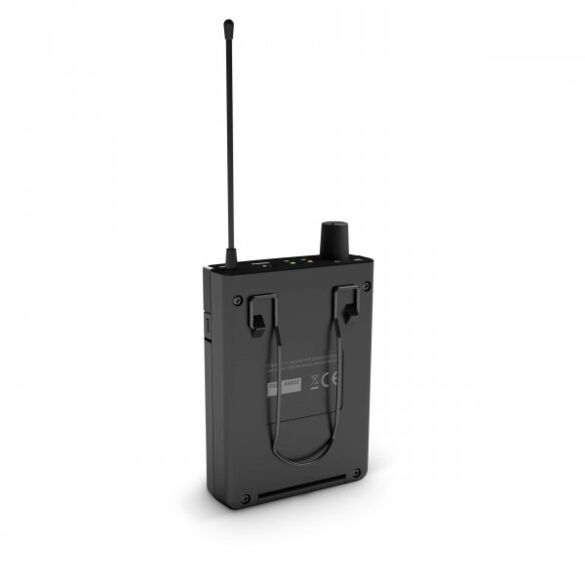

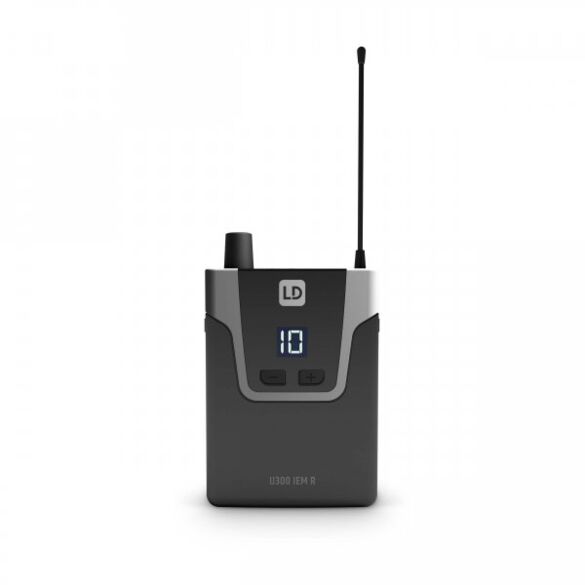

The U300 bodypack receiver has a mini jack socket to connect the earphones as well as displays for channel, stereo mode and low battery status. Running on two AA batteries, it has an operating time of 10 hours. A practical controller allows individual adjustment of the monitoring volume during performance. 19" rack assembly kit included.

 189,00 €
Moyens de paiement sur notre site
Moyens de paiement sur notre site :
*
Garantie
3 ans
Un conseil? Une demande de devis? 01 60 43 26 65
Caractéristiques techniques
Type de produitIn-Ear monitoring
TypeSet
Gamme de fréquences HF470 - 490 MHz
Poids1,51 kg

LDU3047IEMR - U304.7 IEM R

Type de produitAccessoires pour in-ear monitoring
TypeRécepteurs
Gamme de fréquences HF470 - 490 MHz
Canaux12
Type de transmissionFM, mono/stereo
Réponse en fréquence50 - 16.000 Hz
Taux de distorsion (THD)0,25 %
Sortie audioMini-jack stéréo 3,5 mm
Impédance minimale16 Ohm(s)
Niveau de sortie audio maximal100 (@ 16 Ohm capacité de charge) mW, 73 (@ 33 Ohm capacité de charge) mW
Connecteur antenneFixé au boîtier
RéglagesCanal vers le bas, Canal vers le haut, Interrupteur Marche/Arrêt, Potentiomètre de volume
IndicateursRF (LED)
Tension secteur2 piles 1,5 Volt LR06 (AA)
Autonomie< 10 Std.
Largeur64 mm
Hauteur (mm)103 mm
Profondeur24 mm
Poids0,085 kg
FonctionnalitésLED d'état des piles, livré avec piles

LDU3047IEMT - U304.7 IEM T

Type de produitAccessoires pour in-ear monitoring
TypeÉmetteurs
Gamme de fréquences HF470 - 490 MHz
Canaux12
Mode d'utilisationMono/Stéréo
Type de transmissionFM, stéréo
Puissance de sortie HF10 mW
Réponse en fréquence50 - 16.000 Hz
Rapport signal/bruit90 dB
Taux de distorsion (THD)<0,5%
Dynamique88 dB
Entrées2
Connecteurs d'entréemini-jack stéréo 3,5 mm (AUX In), XLR
Impédance d'entrée (kohms)8,5 kohms
Sensibilité d'entrée-4,5 dbu V
Connecteur antenneBNC
RéglagesNiveau d'entrée, Power On/Off, Sélecteur Mono/Stéréo
IndicateursÉcran LCD, Écran LCD multifonctions
Consommation électrique1,7 W
Tension secteur12 - 18 V continus
Largeur212 mm
Hauteur (mm)43 mm
Profondeur123 mm
Poids0,66 kg
Accessoires (inclus)Antenne BNC, Bloc secteur, Kit de montage en rack 19
