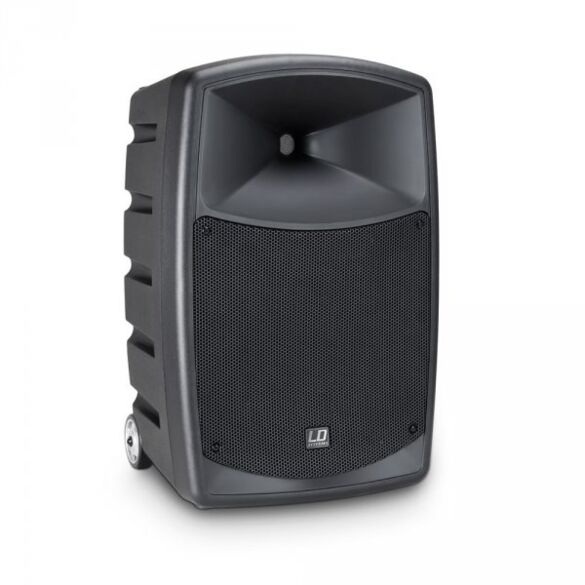

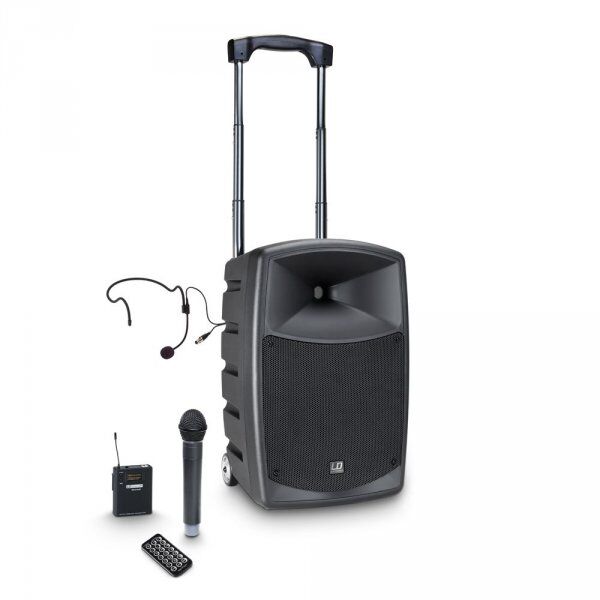

The LD Systems Roadbuddy 10 is an elegant solution for voice and music transmission on the go. The 2-way speaker with a 10" custom woofer and a 1" compression driver is operated with a rechargeable battery for up to 8 hours and is powered by a class D power amplifier with a highly efficient switching power supply and 480 watts of peak power.

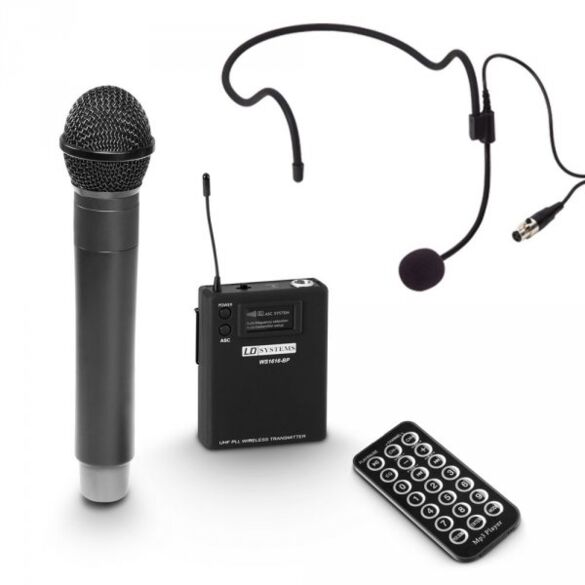

The Roadbuddy relies fully on wireless transmission: it has two UHF radio receiver who operates in the license-free 863 - 865 MHz range. The on-board Bluetooth player with backlit multifunction display ,equalizer, USB port and SD card slot supports the mp3, wma and wav formats. Two handheld microphone with 10 mW output power(LDRBUD10HHD2), two headset microphones with belt pack (LDRBUD10BPH2) or as an alternative a handheld microphone and a headset microphone with belt pack (LDRBUD10HBH2) and an IR-remote control for the player are included.

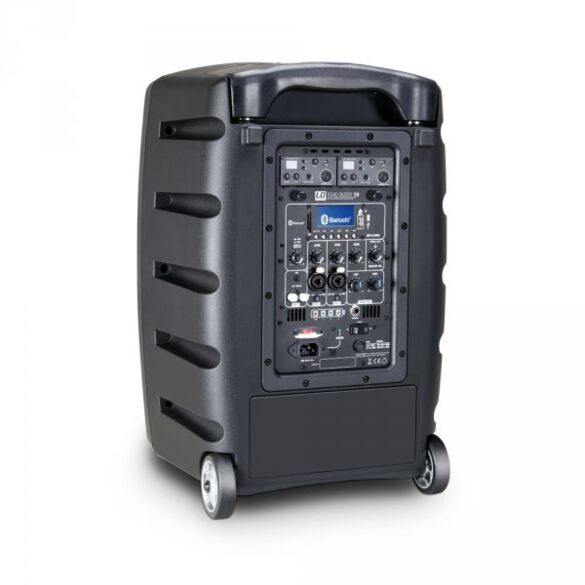

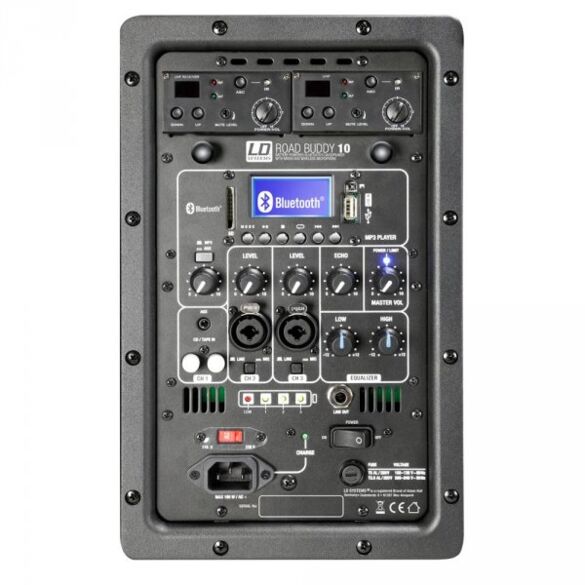

For wired devices, the Roadbuddy has two channels with combo jacks and individual volume controllers that are switchable for microphone and line level, a stereo input via RCA (Cinch) sockets (mono summed) and a 3.5 mm Aux input. Treble, Bass, Echo and Master volume controllers complete the control panel.

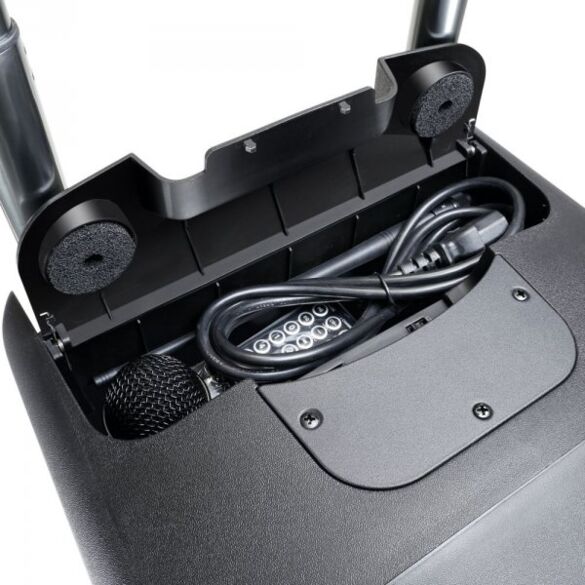

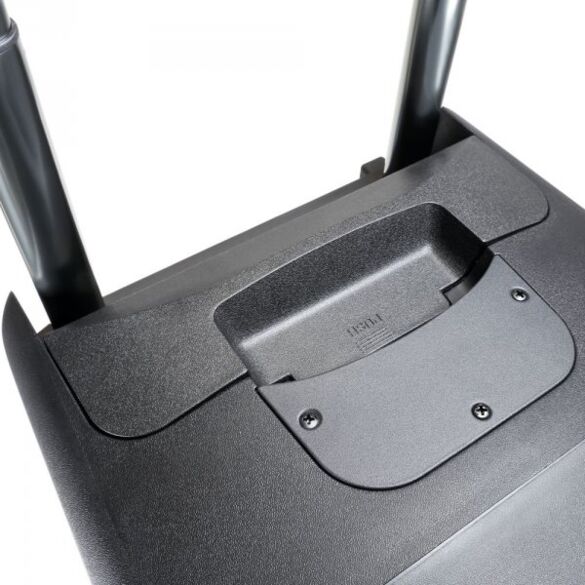

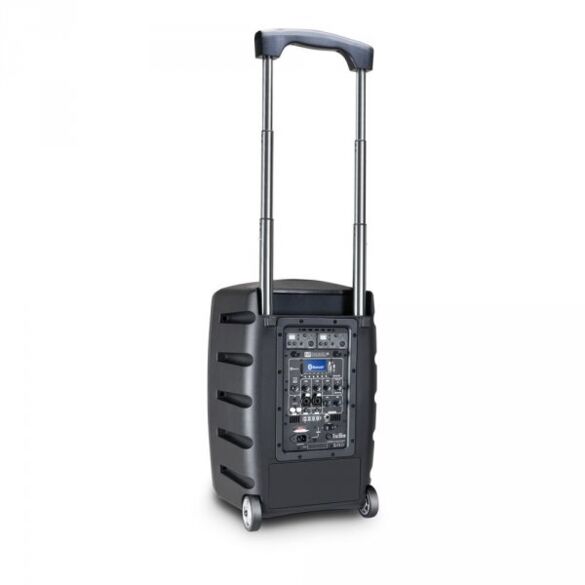

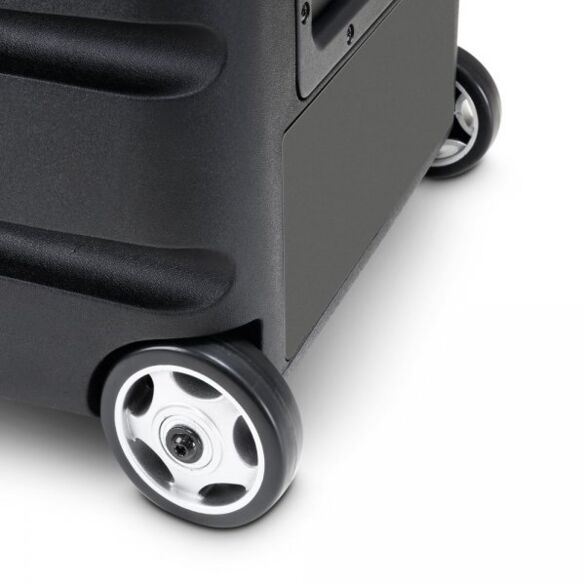

The LD Systems Roadbuddy is easily transportable thanks to built-in castor wheels and a pull-out handle. On the top, there is a handy storage compartment for up to two hand-held transmitter microphones. The plastic housing of this lightweight device has been designed to accommodate a 35 mm tripod mount.
Type de produit | Haut-parleurs sur piles |
Diamètre boomer/médium | 10 " |
Diamètre Boomer | 254 mm |
Aimant boomer | Ferrite |
Marque boomer | Sur mesure |
Diamètre tweeter | 1 " |
Diamètre Tweeter | 25,4 mm |
Aimant tweeter | Ferrite |
Marque tweeter | Sur mesure |
Amplificateur | Classe D |
Puissance (efficace) | 120 W |
Puissance (crête) | 480 W |
Réponse en fréquence | 55 - 18000 Hz |
Niveau de pression sonore (pour 1 W à 1 m) | 96 dB |
Niveau de pression sonore maximal | 115 dB |
Circuits de protection | Court-circuit, surcharge, Surtension |
Réglages | CD / Tape IN Level, Echo, Graves, High, Mic 1 Level, Mic 2 Level, sélecteur AUX / MP3, Volume général |
Indicateurs | Indicateur de charge / batterie, Power |
Médias reconnus | Bluetooth, Carte SD, Clé USB |
Formats reconnus | CD avec fichiers WAV, Fichiers MP3, Fichiers WMA |
Contrôles lecteur médias | Égaliseur, Mode (Menu / Bluetooth /SD / USB), Plage précédente, Plage suivante, Play / Pause, Repeat, Stop |
Indicateurs lecteur médias | Écran LCD multifonctions rétro-éclairé |
Entrées ligne | 1 |
Connecteurs d'entrée ligne | 2 x Cinch (RCA), 2 x XLR, Jack 6,35 mm, Mini-Jack 3,5 mm |
Entrées micro | 2, 2 x XLR, Jack 6,35 mm |
Gamme de fréquences HF | 863 - 865 MHz |
Type de modulation | FM |
Canaux | 16 |
Réponse en Fréquence récepteur HF | 50 - 17000 Hz |
Contrôles récepteur HF | ASC (scan automatique), Niveau de Mute (Squelch), Power / Volume, Value Down, Value Up |
Indicateurs récepteur HF | écran LED, indicateur audio (LED), RF (LED) |
Connecteurs récepteur HF | nTNC pour antenne récepteur |
Puissance d'Émission HF | 10 mW |
Poids du Micro/Émetteur à main | 0,285 kg |
Matériau du Micro/Émetteur à main | Aluminium |
Poids d'émetteur ceinture | 0,08 kg |
Matériau d'émetteur ceinture | plastique ABS |
Tension secteur | Bloc secteur, 100 V - 120 V / 60 Hz, 220 V - 240 V AC / 50 Hz |
Batteries rechargeables | 12 V / 5 Ah |
Matériau coffret | Polypropylène |
Finition coffret | Bass Reflex |
Largeur | 415 mm |
Hauteur (mm) | 525 mm |
Profondeur | 328 mm |
Poids | 16,5 kg |
Autres propriétés | Embase pour pied, diamètre 36 mm, Infrarouge pour lecteur de médias, poignée de transport, Poignée télescopique, Roulettes de transport |
